AVIRAT CRUCIBLE PVT. LTD.

For calculation of brass working capacity, following assumptions are taken:

Specific Gravity of Brass is taken as 8.75

Working capacity is 90% of brimful capacity

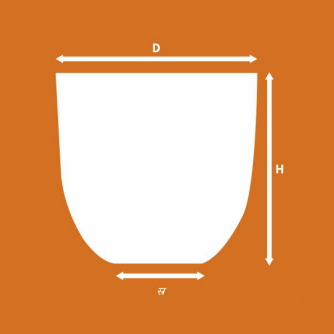

TYPE & SIZE	HEIGHT (MM)	OUTSITE DIAMETER	BOTTOM DIA (MM)	WATER CAPACITY IN LTRS
TYPE & SIZE	HEIGHT (MM)	TOP DIA (MM)	BOTTOM DIA (MM)	WATER CAPACITY IN LTRS
BUC-70	375	475	280	34.5
BUC-76	390	530	300	30
BUC-77	415	531	300	35
BUC-100	410	532	300	44.5
BUC-101	390	560	340	40
BUC-125	450	533	300	50.5
BUC-126	450	533	300	45
BUC-127	500	535	300	50
BUC-131	475	565	340	50
BUC-150	500	535	300	60
BUC-151	525	575	340	65
BUC-175	550	538	300	67
BUC-200	610	540	300	77.5
BUC-210	620	540	300	78.5
BUC-215	500	615	355	78.5
BUC-250	640	620	355	109.5
BUC-300	710	622	355	125.5
BUC-350	810	622	355	144.5
BUC-400	900	622	355	164.5
BUC-385	685	720	380	160
BUC-422	735	723	380	171
BUC-450	800	724	380	190
BUC-500	755	795	360	203.75
BUC-555	830	796	360	230
BUC-576	950	725	356	241
BUC-600	905	807	360	256
BUC-700	1020	807	360	301
BUC-760	900	885	356	310
BUC-860	1000	885	356	348
BUC-1000T	1050	960	550	443
BUC-1050	1151	886	356	445
