AVIRAT CRUCIBLE PVT. LTD.

For calculation of brass working capacity, following assumptions are taken:

Specific Gravity of Brass is taken as 8.75

Working capacity is 90% of brimful capacity

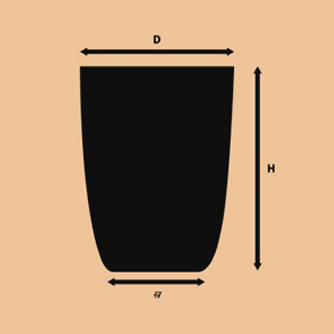

TYPE & SIZE	HEIGHT (MM)	OUTSITE DIAMETER		WATER CAPACITY IN LTRS
TYPE & SIZE	HEIGHT (MM)	TOP DIA (MM)	BOTTOM DIA (MM)	WATER CAPACITY IN LTRS
AC-1	90	90	55	0.21
AC-2	110	102	65	0.33
AC-3	132	110	70	0.5
AC-4	140	115	75	0.55
AC-5	150	125	85	0.8
AC-6	165	130	90	0.9
AC-8	180	155	110	1.35
AC-10	200	174	120	2.45
AC-12	210	174	120	2.6
AC-14	220	175	120	2.75
AC-16	232	195	140	3.75
AC-18	240	210	140	4.3
AC-20	270	227	150	5.75
AC-25	285	227	150	6.15
AC-27	290	227	150	6.3
AC-30	290	255	150	7.65
AC-33	310	265	180	8.6
AC-35	327	274	180	9.9
AC-40	340	275	180	10.3
AC-45	362	275	180	11.25
AC-50	340	296	195	11.5
AC-55	360	296	195	11.7
AC-60	375	300	195	12.2
AC-70	402	300	195	13.5
AC-75	385	350	206	16.5
AC-80	400	354	206	17.5
AC-86	420	354	206	19
AC-90	400	354	206	19.5
AC-100	420	354	206	21.2
AC-120	450	355	206	22.3
AC-125	430	380	215	24
AC-130	450	380	215	25
AC-140	475	381	215	27.5
AC-150	490	382	215	28
AC-170	505	383	215	30
AC-185	550	383	215	31.5
AC-185H	590	383	215	32.5
AC-190	500	415	220	34
AC-195	525	417	220	36.5
AC-200	510	441	220	38
AC-215	550	418	220	38
AC-225	520	443	220	40.5
AC-230	540	443	220	42.5
AC-240	605	420	220	43
AC-250	560	444	220	46.5
AC-255	615	444	220	51.5
AC-280	665	444	220	54.5
AC-325	590	470	280	58
AC-350	615	473	280	62
AC-355	670	474	280	69
AC-375	710	475	280	74.5
AC-400	665	542	300	84
AC-405	660	581	345	93
AC-425	685	544	300	87
AC-500	715	543	300	90
AC-510	695	581	345	106
AC-550	730	535	300	95
AC-555	725	581	345	110
AC-600	770	545	300	100
AC-610	770	584	345	117
AC-675	810	584	345	121
AC-710	845	584	345	126
AC-800	815	545	300	109
AC-1000	825	624	355	150
AC-1200	880	625	355	158
AC-1500	900	784	355	255
AC-1800	1030	785	355	300
